OEX Deutsch DT 6 Way Kit New Part

OEX Deutsch DT 6 Way Kit New Part.

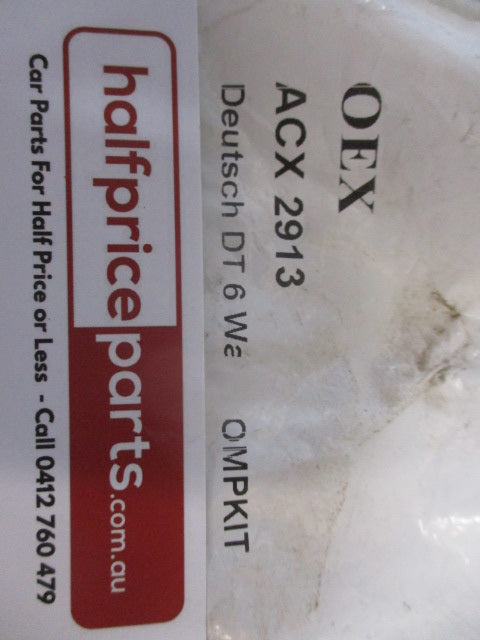

Part No ACX2913

THIS IS A GUIDE ONLY.
You Must Confirm Fitment With A Dealer / Manufacturer Prior To Purchase To Ensure This Will Fit Your Vehicle Or This Is A Non-Returnable / Refundable Item.

This Is A Non-Returnable / Refundable Item.

Please Note That This Is A Electrical Item You MUST Contact A Dealer To Confirm That This Is Suitable For Your Specific Vehicle Electrical Is Non Returnable Or Non Refundable.

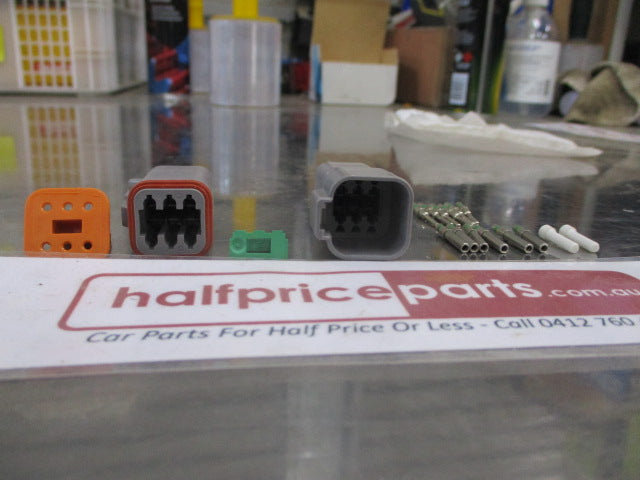

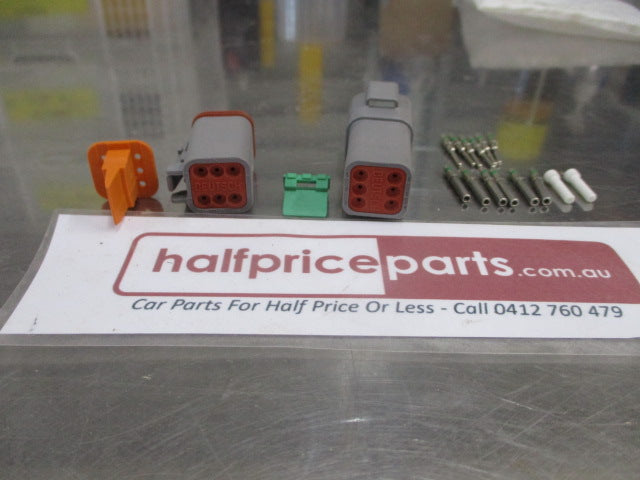

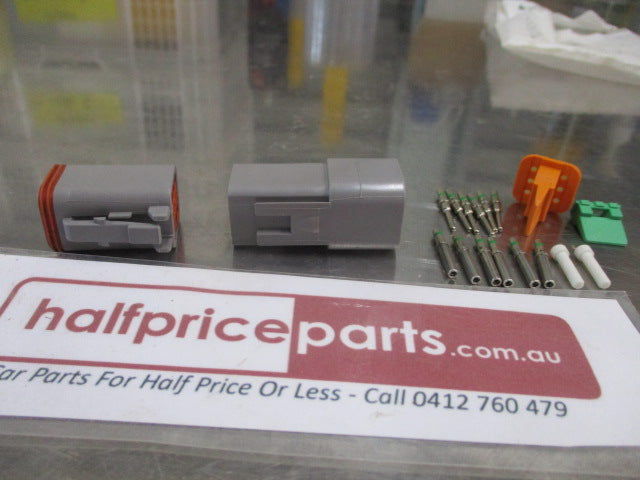

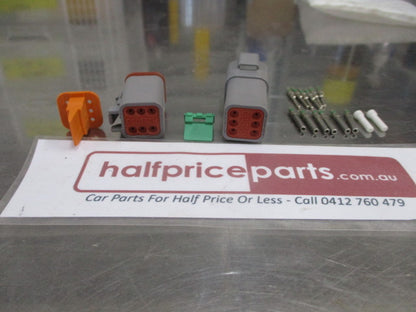

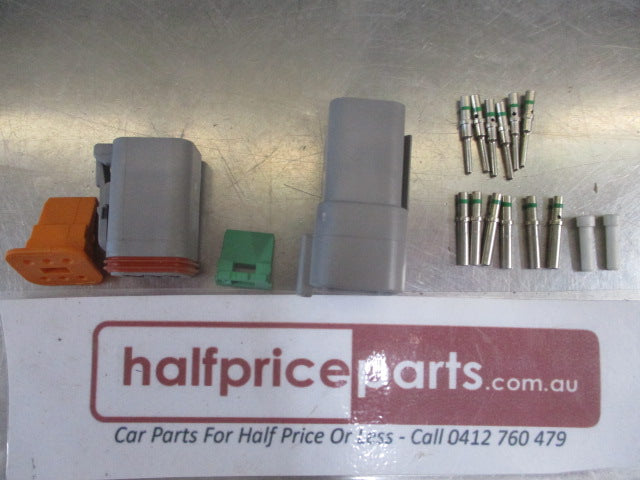

Kit contains:

1 x DT04-6P Receptacle
1 x DT06-6S Plug
1 x W6S Pin Lock
1 x W6P Socket Lock
2 x 114017 Blanking Plug
6 x 0460-215-16141 Pin
6 x 0462-209-16141 Socket

Deutsch DT series connectors will stand up to the harsh environmental challenges that are common to industrial markets that require advanced performance. Proper parts, procedures, and tooling must be used.

Temperature:
Operating at temperatures from -55° C to +125° C continuous at rated current.
Durability:
No electrical or mechanical defects after 100 cycles of engagement and disengagement.
Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Physical Shock:
No unlocking, unmating, or other unsatisfactory result during or after 50 G’s in each of three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond. MIL-STD 202, Method 213, Condition “C”.
Fluid Resistance:
Connectors show no damage when exposed to most fluids used in industrial applications.
Insulation Resistance:
1000 megohms minimum at 25° C.
Moisture Resistance:
Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
Dielectric Withstanding Voltage:
Current leakage less than 2 milliamps at 1500 VAC.
Thermal Cycle:
No cracking, chipping or leaking after 20 test cycles from -55° C to +125° C.
