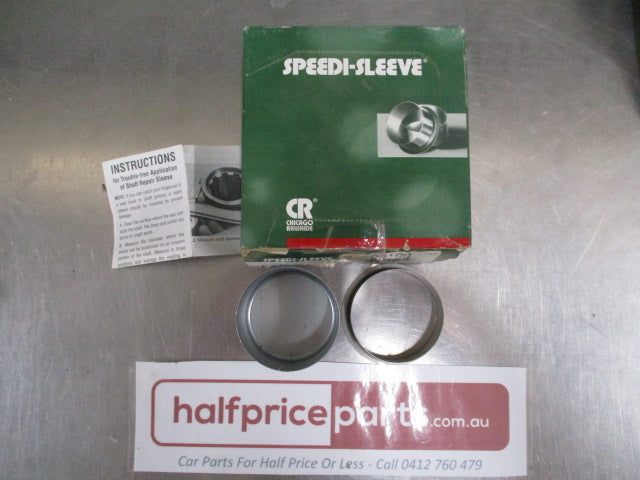

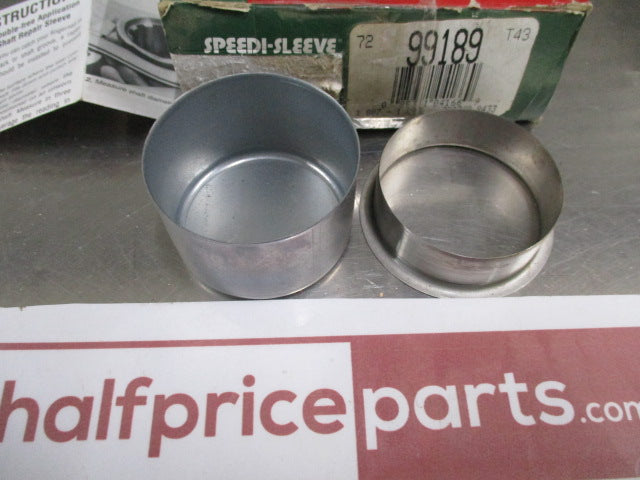

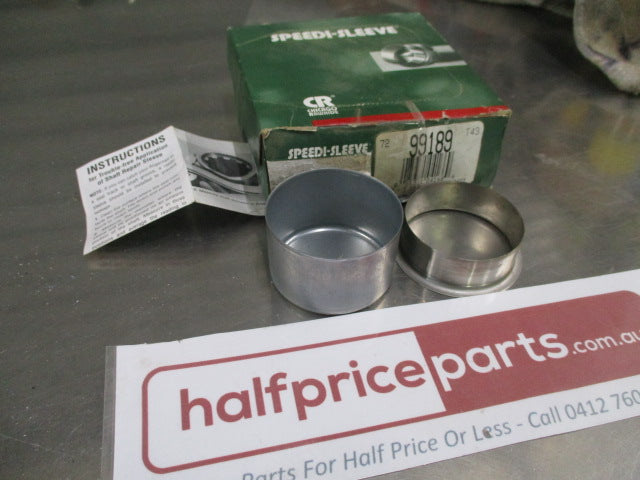

SKF Genuine Speedi-Sleeve Shaft Repair Sleeve - New Part

SKF Genuine Speedi-Sleeve Shaft Repair Sleeve - New Part

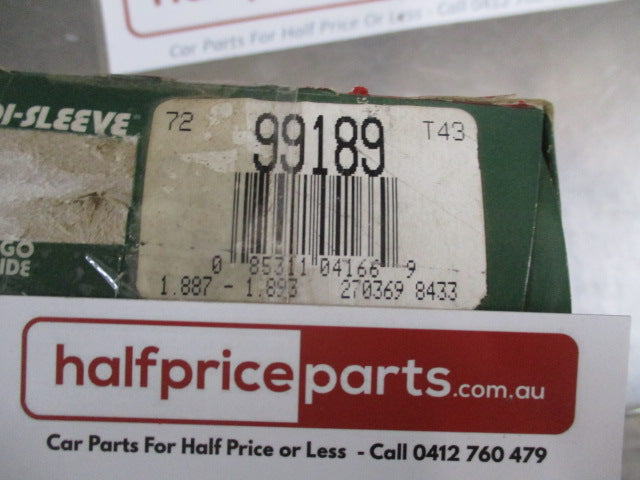

Part No: 99189

THIS IS A GUIDE ONLY.
You Must Confirm Fitment With A Dealer / Manufacturer Prior To Purchase To Ensure This Will Fit Your Vehicle Or This Is A Non-Returnable / Refundable Item.

This Is A Non-Returnable / Refundable Item

Dimensions

Width16.97 mm

Shaft diameter, minimum47.93 mm

Shaft diameter, maximum48.08 mm

Shaft diameter48.03 mm

Removable flange outside diameter56.01 mm

Seal seat width14 mm

To determine the appropriate sleeve size, it is first necessary to clean the shaft carefully. The diameter of an undamaged section of the seal counterface should then be measured on at least three different planes. The arithmetical mean of these measurements determines the size of SKF Speedi-Sleeve. If the value lies within the permissible range listed in the product table for the shaft diameter d1, SKF Speedi-Sleeve will have an adequate tight fit on the shaft and will not require an adhesive.

If no suitable size is listed in the product table, it will be necessary to rework the shaft to an appropriate dimension. This also means that a new seal size will be required. If production quantities are sufficient enough, SKF can provide specially dimensioned SKF Speedi-Sleeve or other wear sleeve solution.
